BVE-4：Vertical Electrophoresis System (Split-type design, up to 4 gels simultaneously)
BVE-4：Vertical Electrophoresis System (Split-type design, up to 4 gels simultaneously)
Couldn't load pickup availability
Share
Product Information
Electrophoresis Technology widely applied in fields such as biological research, analytical chemistry, clinical chemistry, toxicology, pharmacology, immunology, and food chemistry, electrophoresis refers to the phenomenon where charged particles migrate towards electrodes of opposite charge in a direct current electric field. This method enables the separation and analysis of small molecules, and is frequently employed in modern medicine to study proteins, nucleic acids, enzymes, and even viral cells.
Electrophoresis is not only utilized for protein separation and quantification but also finds numerous emerging applications in immunological experiments. For instance, it is used for the electrophoretic determination of hepatitis B antigen (HBAg) in diagnosing hepatitis B and alpha-fetoprotein (AFP) in diagnosing primary liver cancer.
Product Features

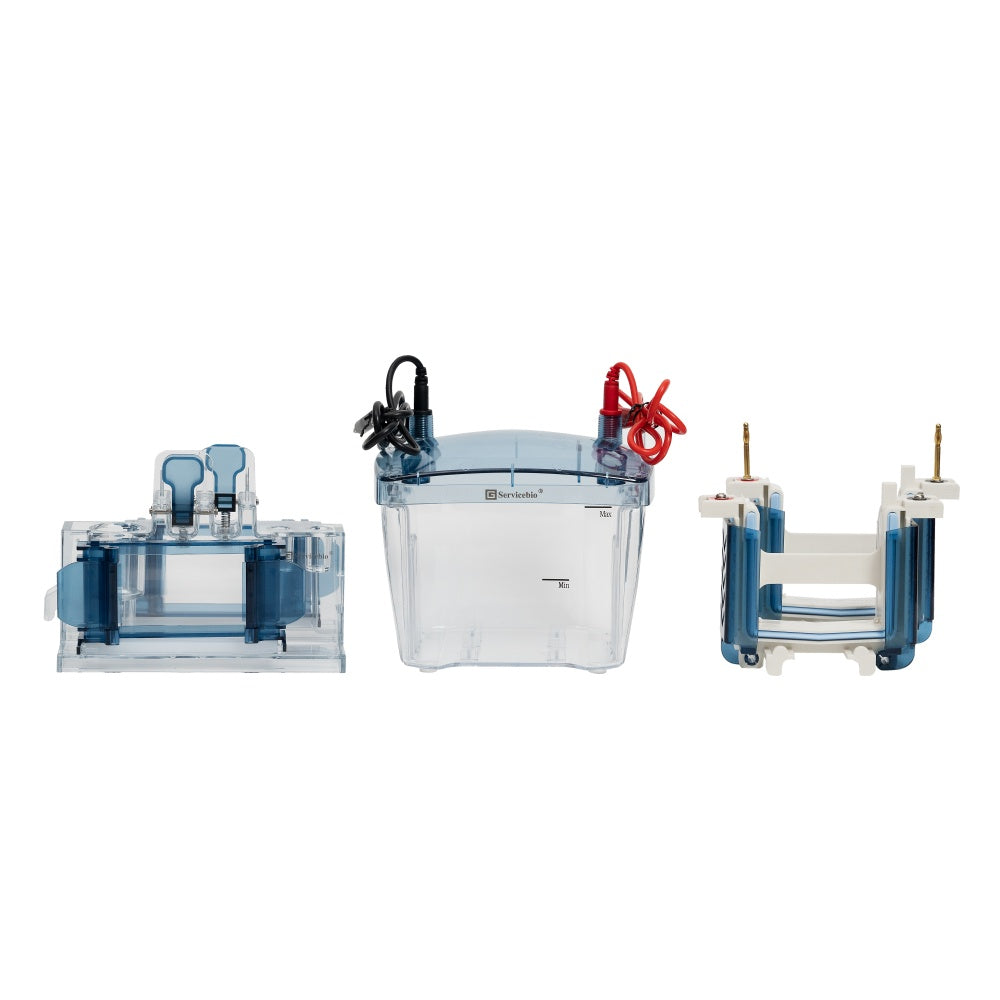

It adopts a separate gel preparation mode for stable and reliable performance, while being compatible with the electrophoresis requirements of prefabricated gel products of this model and specification.

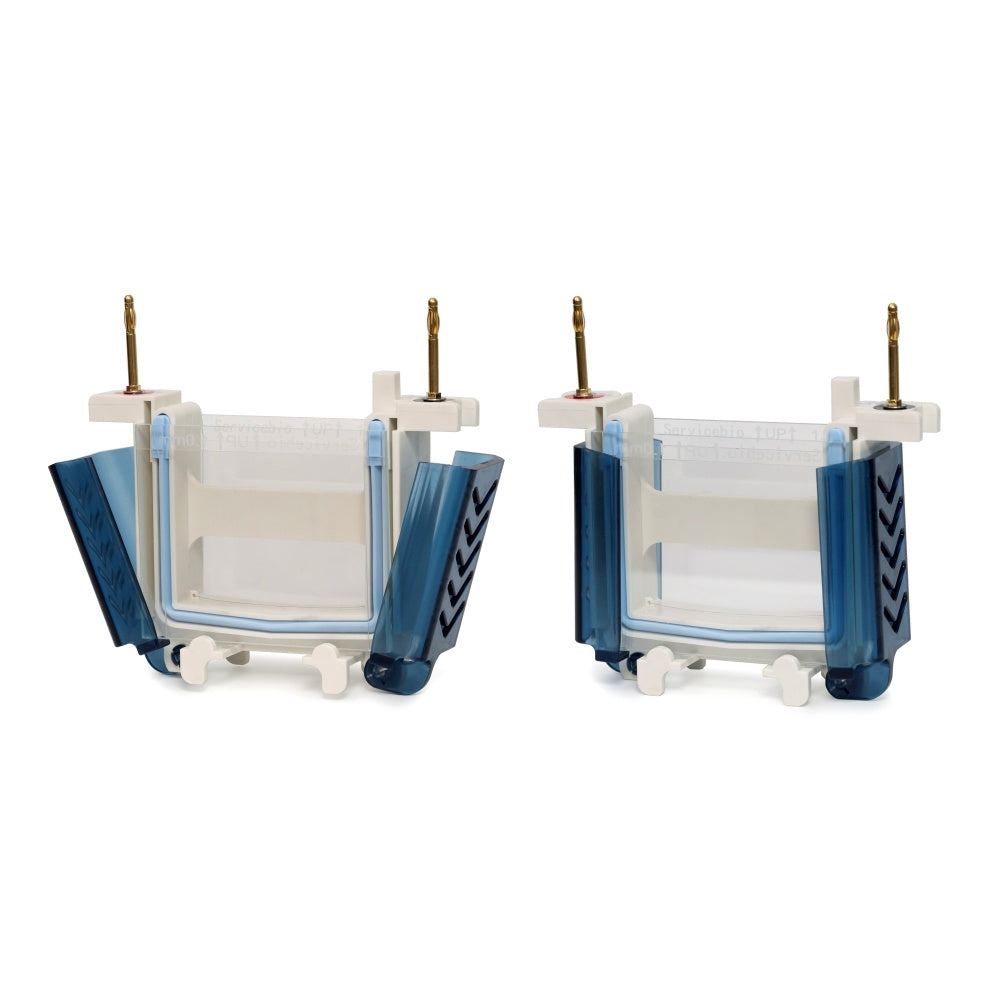

The uniquely designed gel preparation frame is compact and space-saving, allowing for flexible combination and full utilization of space.
It can be adapted to various thicknesses of glass plates and sample combs (1.5mm, 1mm, 0.75mm), meeting different usage requirements.

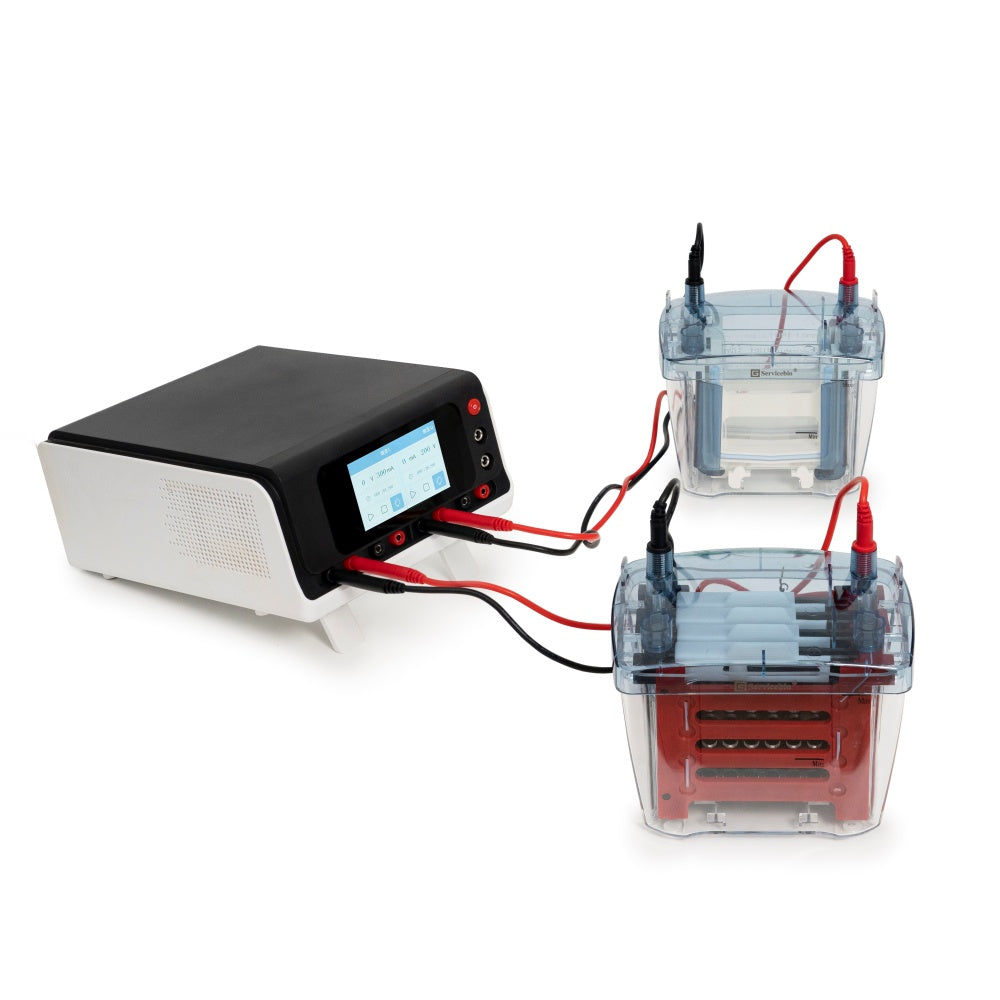

It allows for simultaneous electrophoresis of two or four gels.
It can be used in conjunction with BVT-4 and BVT-2 transfer electrophoresis instruments.
Product Parameters
|
Cat.No. |
BVE-4 |
|
Number of Gels |
1-4 |
|
Gel Size |
83×73mm |
|
External Dimensions |
140×180×185mm |
|
Comb Specifications |
1.0mm: 11 teeth / 15 teeth 1.5mm: 11 teeth / 15 teeth 0.75mm: 11 teeth / 15 teeth |
|
Maximum Buffer Capacity |
1.5L |
Product Information
Electrophoresis Technology widely applied in fields such as biological research, analytical chemistry, clinical chemistry, toxicology, pharmacology, immunology, and food chemistry, electrophoresis refers to the phenomenon where charged particles migrate towards electrodes of opposite charge in a direct current electric field. This method enables the separation and analysis of small molecules, and is frequently employed in modern medicine to study proteins, nucleic acids, enzymes, and even viral cells.
Electrophoresis is not only utilized for protein separation and quantification but also finds numerous emerging applications in immunological experiments. For instance, it is used for the electrophoretic determination of hepatitis B antigen (HBAg) in diagnosing hepatitis B and alpha-fetoprotein (AFP) in diagnosing primary liver cancer.
Product Features
It adopts a separate gel preparation mode for stable and reliable performance, while being compatible with the electrophoresis requirements of prefabricated gel products of this model and specification.
The uniquely designed gel preparation frame is compact and space-saving, allowing for flexible combination and full utilization of space.
It can be adapted to various thicknesses of glass plates and sample combs (1.5mm, 1mm, 0.75mm), meeting different usage requirements.
It allows for simultaneous electrophoresis of two or four gels.
It can be used in conjunction with BVT-4 and BVT-2 transfer electrophoresis instruments.
Product Parameters
|
Cat.No. |
BVE-4 |
|
Number of Gels |
1-4 |
|
Gel Size |
83×73mm |
|
External Dimensions |
140×180×185mm |
|
Comb Specifications |
1.0mm: 11 teeth / 15 teeth 1.5mm: 11 teeth / 15 teeth 0.75mm: 11 teeth / 15 teeth |
|
Maximum Buffer Capacity |
1.5L |
