SMB-MH: Dry Bath (Heating, Shaking)
SMB-MH: Dry Bath (Heating, Shaking)
Couldn't load pickup availability
Share
Product Introduction
This dry bath adopts advanced microcomputer-controlled and uses high-purity aluminum material as a heat-conducting medium to replace the traditional water bath device. A variety kinds of metal adapters can be selected for various centrifuge tubes when using the dry bath.
Product Features

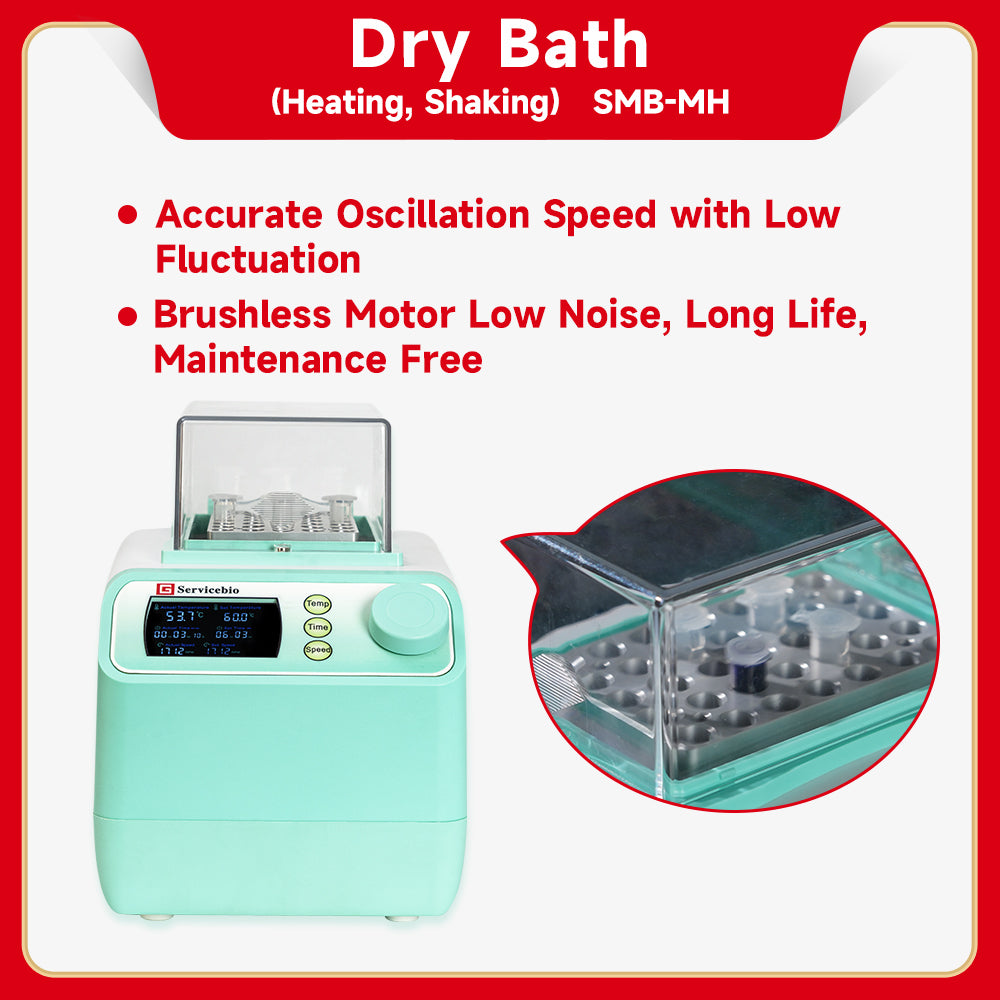

1.The oscillation speed is accurate, with small fluctuations, a brushless motor, low noise, long service life, and maintenance-free.
2. Multiple modules to choose from.
3..The instrument has fast heating speed, uniform heating, precise temperature control, and high stability.
4.Timing function with buzzer alarm.
Parameter Comparison
Lifting speed of heating and cooling
|
Cat. No. |
SMB-C |
SMB-H |
SMB-PC |
SMB-MH |
|
Programming Function |
_ |
_ |
Programmable |
_ |
|
Horizontal Amplitude |
_ |
_ |
_ |
3 mm |
|
Speed Range |
_ |
_ |
_ |
100-2000 rpm |
|

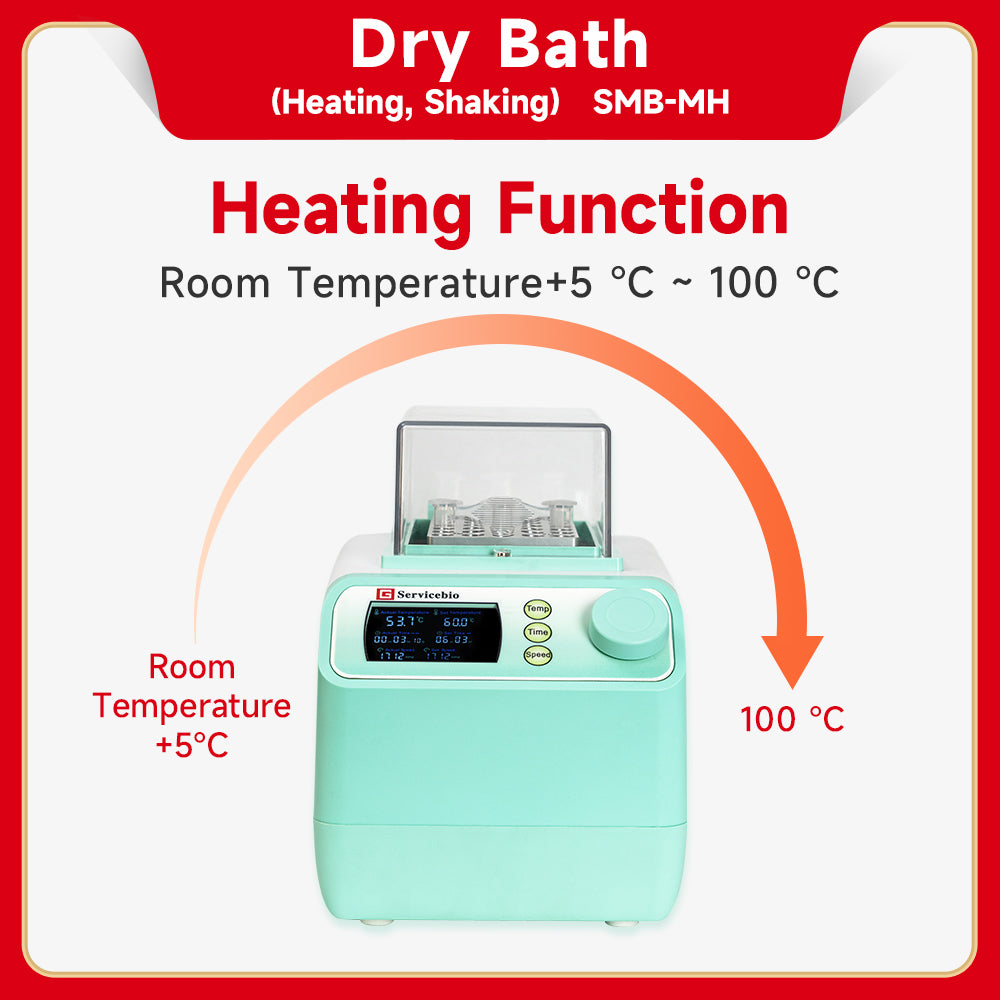

Temperature Control Range |
0-100℃ |
RT+5℃-100℃ |
0-100℃ |
RT+5℃-100℃ |
|
Temperature Setting Range |
0-100℃ |
RT+5℃-100℃ |
0-100℃ |
RT+5℃-100℃ |
|
Timing Range |
1min- 99h59min |
1min- 99h59min |
1min- 99h59min |
1min- 99h59min |
|
Module Temperature Stability @40-100℃ |
≤±0.5℃ |
≤±0.5℃ |
≤±0.5℃ |
≤±0.5℃ |
|
Module Temperature Uniformity @40℃ |
≤±0.3℃ |
≤±0.3℃ |
≤±0.3℃ |
≤±0.5℃ |
|
Module Temperature Uniformity >@40℃ |
≤±0.5℃ |
≤±0.5℃ |
≤±0.5℃ |
≤±0.5℃ |
|
Temperature Display Accuracy |
0.1℃ |
0.1℃ |
0.1℃ |
0.1℃ |
|
≤15 min (20℃-100℃) |
≤15 min (20℃-100℃) |
≤15 min (20℃-100℃) |
≤15 min (room temperature-100℃) |
|
|
Sample Processing Capacity |
1 standard module |
1 standard module |
1 standard module |
1 standard module |
|
Input Power Supply |
AC100V/AC 220V 50Hz/60Hz |
AC100V/AC 220V 50Hz/60Hz |
AC100V/AC 220V 50Hz/60Hz |
AC100V/AC 220V 50Hz/60Hz |
|
Power |
150 W |
150 W |
150 W |
216 W |
|
Fuse |
250V/3A |
250V/3A |
250V/3A |
250V/3A |
|

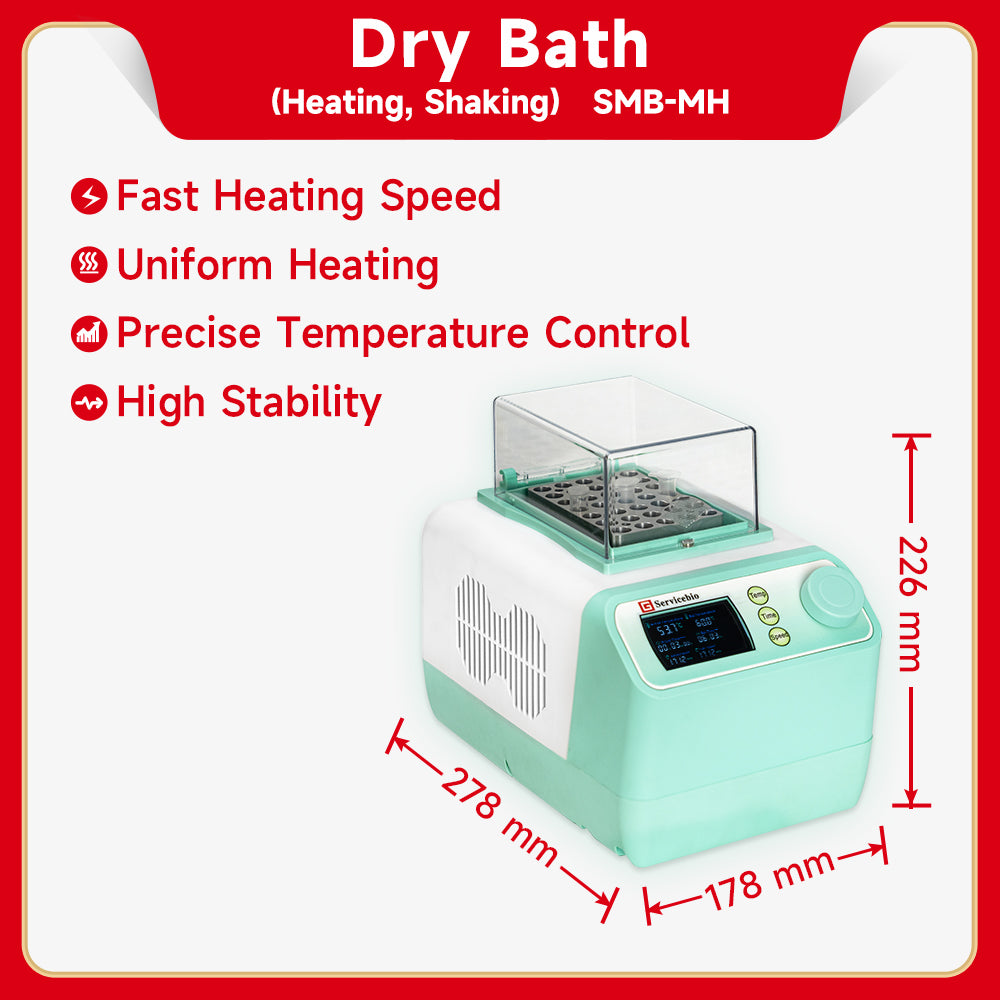

Overall Dimension |
175*278*197mm |
175*278*197mm |
175*278*197mm |
175*278*226mm |
|
Net Weight |
3.3 kg |
2.2 kg |
3.3 kg |
10.4 kg |
Module Parameters:
|
Model |
SMB-MH |
|
Standard Module |
A: 1.5 mL X 35 （Recommended Speed 1200-1800 RPM） |
|
Optional Modules |
B: 0.5 mL X 54 （Recommended Speed 1100-1600 RPM） |
|
C: 0.2 mL X 96 （Recommended Speed 1100-1500 RPM） |
|
|
D: 2.0 mL X 35 （Recommended Speed 1200-1800 RPM） |
|
|
E: 5.0mL X 24 （Recommended Speed1500-1700 RPM） |
|
|
F: 10mL X 15(high lid)（Recommended Speed1600-1800 RPM） |
|
|
G: 15mL X 12 (high lid)（Recommended Speed1400-1700 RPM） |
|
|
H: 50mL X 6 (high lid)（Recommended Speed1400-1500 RPM） |
|
|
Dimensions (mm) |
178x278x226 mm |
|
Weight (kg) |
10.4 |
Note: Metal modules can be customized according to user requirements, if you need customized modules, please contact the supplier.
