Product Overview
This product is a rectifier device that converts alternating current into direct current. It can convert alternating current into controllable constant voltage and constant current direct current to meet the needs of experimental production such as electrophoresis. It is widely used in biology, medicine and other fields, such as nucleic acid gel electrophoresis, Protein gel electrophoresis, Western Blot protein transfer and other experiments.
Product Advantages
1. It can be fine-tuned online in real time in the working state;
2. Intelligent PID control, stable and reliable output;

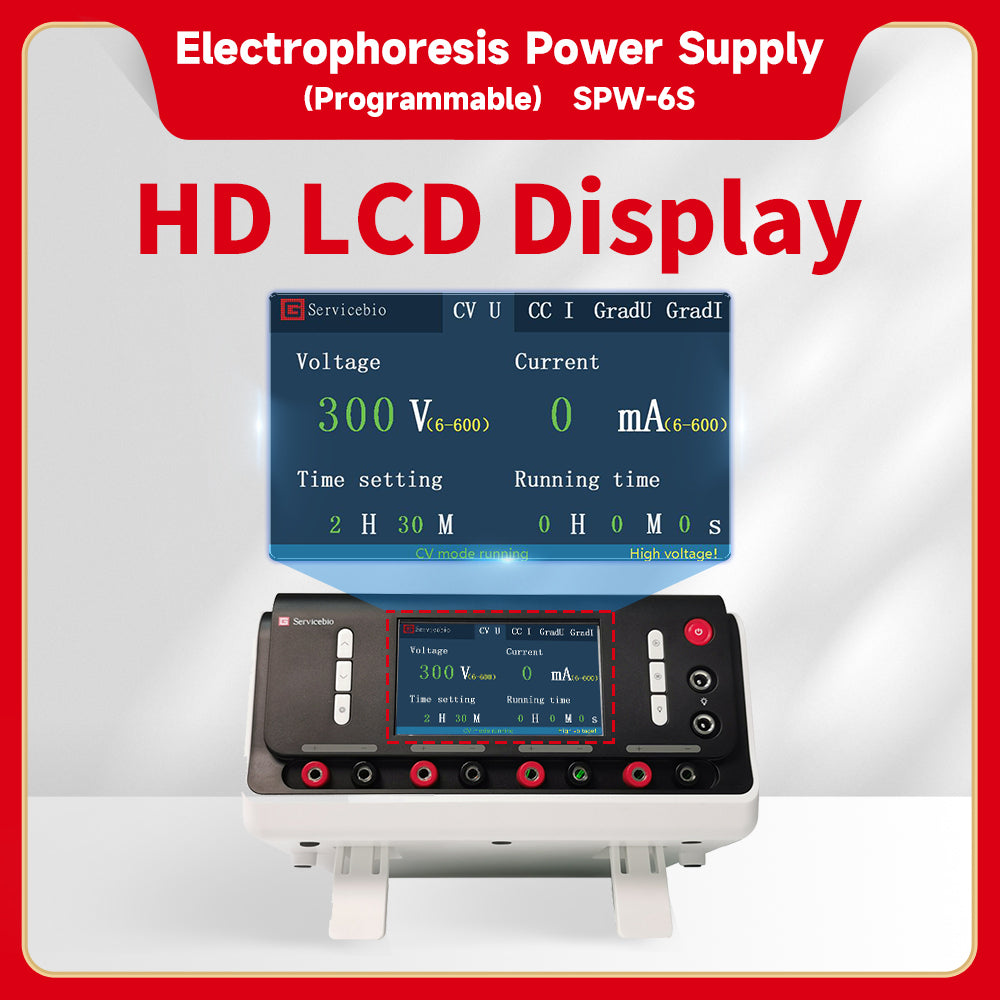

3. High-definition LCD screen, which can display setting parameters and display real-time voltage and current values;
4. High precision;

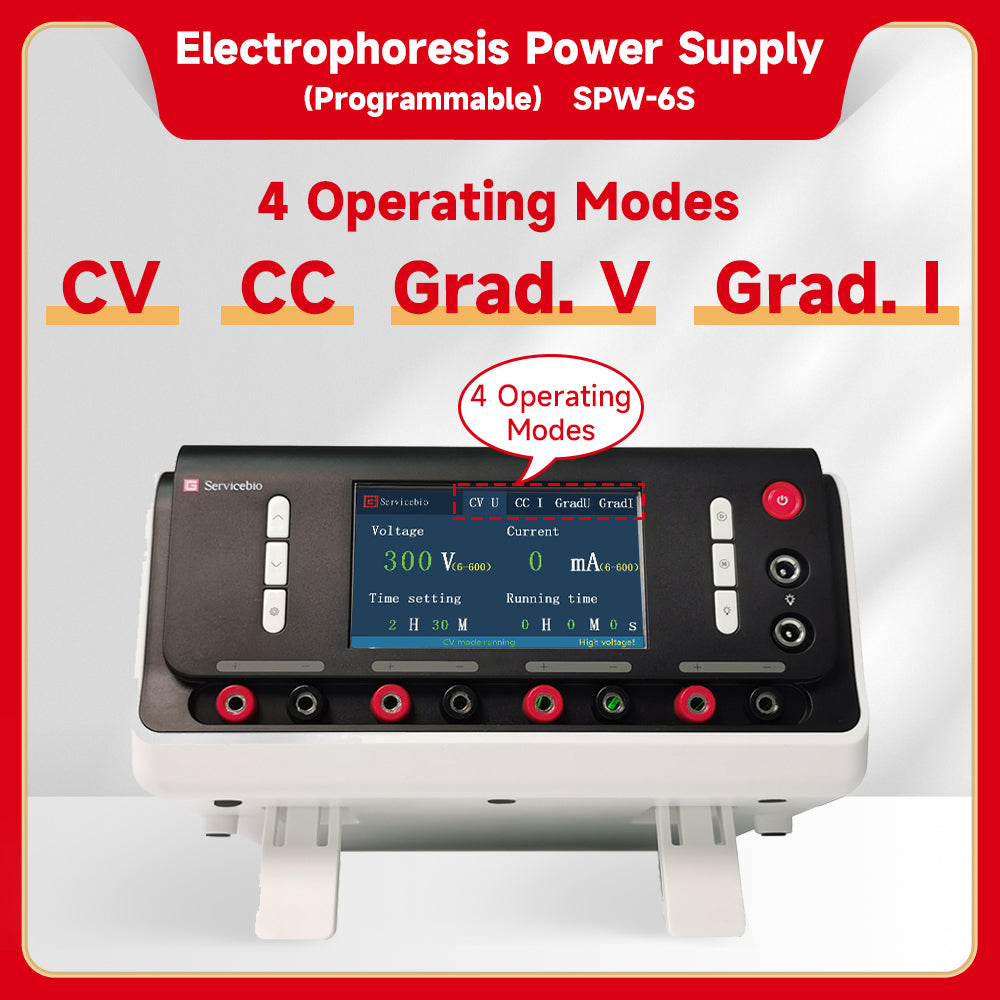

5. With constant voltage timing, constant current timing, gradient voltage programming, gradient current programming and other working modes;
6. Adopt forward switching power supply design with good stability. With overvoltage, overcurrent, overload, variable load, no-load protection, automatic alarm protection for abnormal conditions;
7. The upper limit of output voltage or current can be dynamically set;
8. The parameters can be remembered when the power is cut off. The equipment is accidentally cut off. After power-on, the unfinished setting program can be automatically run.
Technical Parameters
1. Input power: 180V-240V
2. AC frequency: 50Hz/60Hz
3. Ambient temperature: 4°C-40°C
4. Ambient humidity: 10%-70%
5. Output quantity: four groups of positive and negative A/B
6. Output range: voltage 6V-600V (accuracy 1V); 5mA-600mA (accuracy 1mA)
7. Control accuracy: voltage setting <100V, voltage stability accuracy <1V;
>100V, voltage stability accuracy <±1%
Current setting <100mA, current stability accuracy <1mA;
>100mA, current stability accuracy <±1%
8. Rated output power: 300W
9. Dimensions (mm): 265 (L) × 215 (W) × 120 (H)
This product is a rectifier that converts alternating current into direct current. it can convert
alternating current into controllable constant voltage and constant current direct current,
which meets the experimental production demand of electrophoresis and is widely used in
biology, medical etc.fields.
Product Features
1. lt can realize separate control of two groups of systems, and can stably realize the operation of two groups of constant current mode, constant voltage mode and gradient mode at the same time withoutinterfering with each other.
2.In the working state, online real-time minute adjustment is possible.
3.Intelligent PlD control, stable and reliable output.
4.The high-definition touch LCD screen can display setting parameters and real-time voltage and current values.
5. High precision.
6. With constant voltage timing, constant current timing, constant voltage programming and constantcurrentprogrammingand other working modes.
7. Adopt forward switching power supply design, good stability. With overvoltage, overcurrent,overload, variable load, no-load protection, automatic alarm protection under abnormal conditions.
8. Can dynamically set output voltage or current upperlimit.
9. The parameters can be memorized when the power is turned off. if the device is powered offunexpectedly,the unfinished setting program can be run automatically after power-on.
