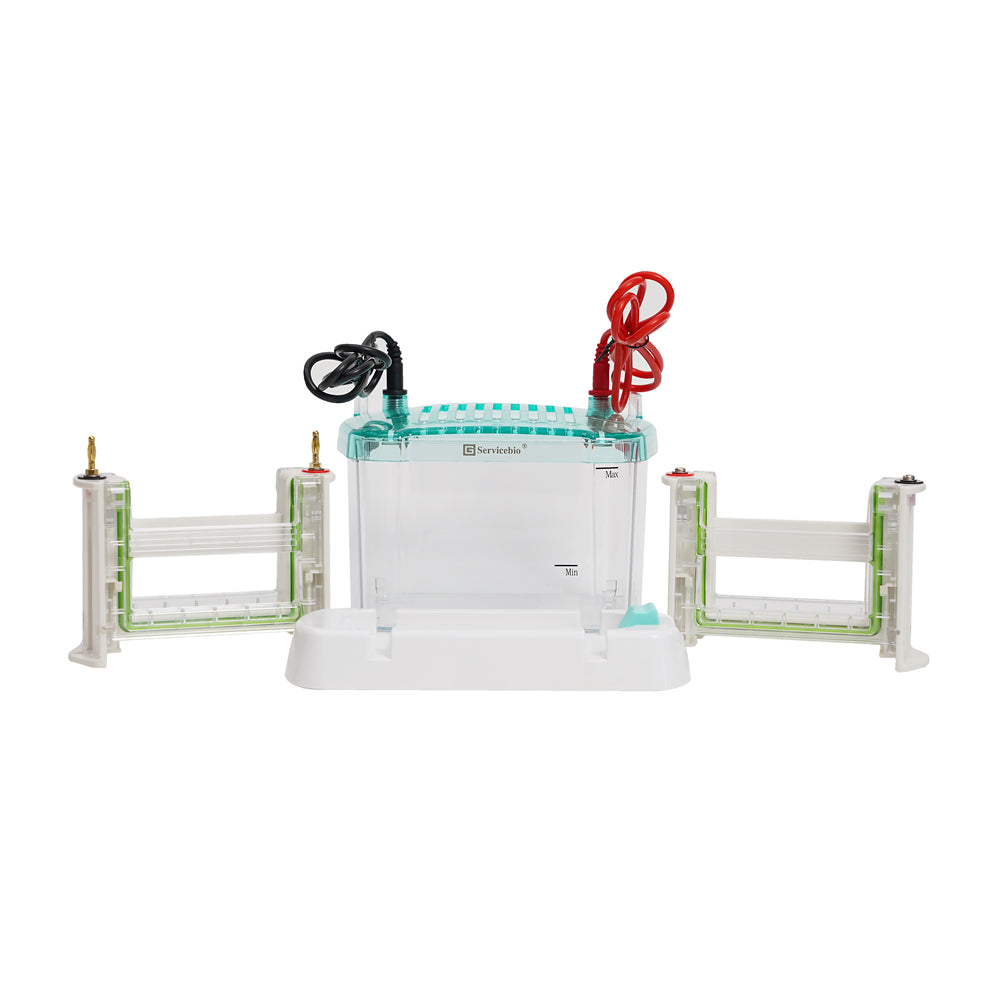

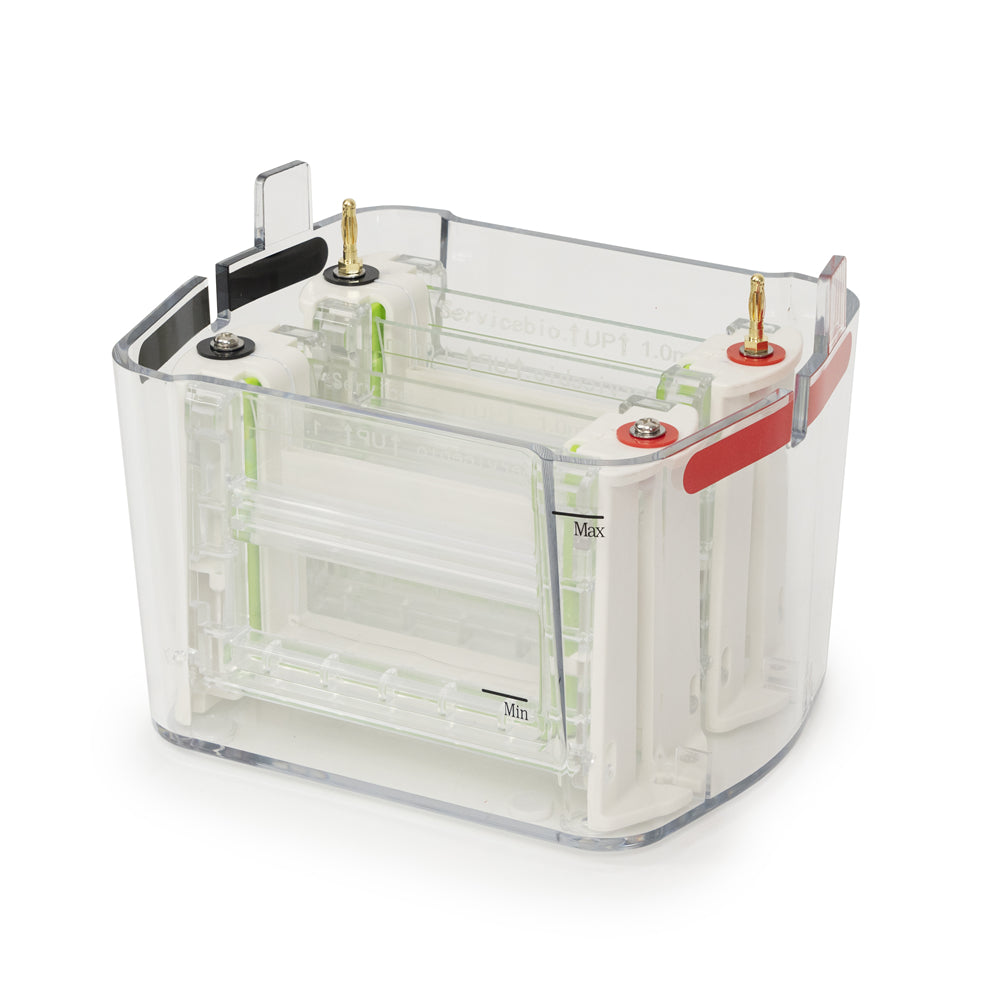

SVE-4：Vertical Electrophoresis System (Integrated, up to 4 gels at the same time)
SVE-4：Vertical Electrophoresis System (Integrated, up to 4 gels at the same time)
Couldn't load pickup availability
Share
Product Introduction
Electrophoresis technology is widely used in biological research, analytical chemistry, clinical chemistry, toxicology, pharmacology, immunology, food chemistry, and other fields.
In a direct current electric field, the phenomenon of charged particles moving towards electrodes with opposite charges is known as electrophoresis. Through electrophoresis, small molecules can be separated and analyzed. Modern medicine often employs electrophoresis to study proteins, nucleic acids, enzymes, and even virus cells.
Electrophoresis is not only applicable to the separation and quantification of proteins but also boasts numerous new applications in immunological experiments. For instance, it is used in the electrophoresis assay of hepatitis B antigen (HBAg) for the diagnosis of hepatitis B and the electrophoresis assay of alpha-fetoprotein (AFP) for the diagnosis of primary liver cancer.
Product Features

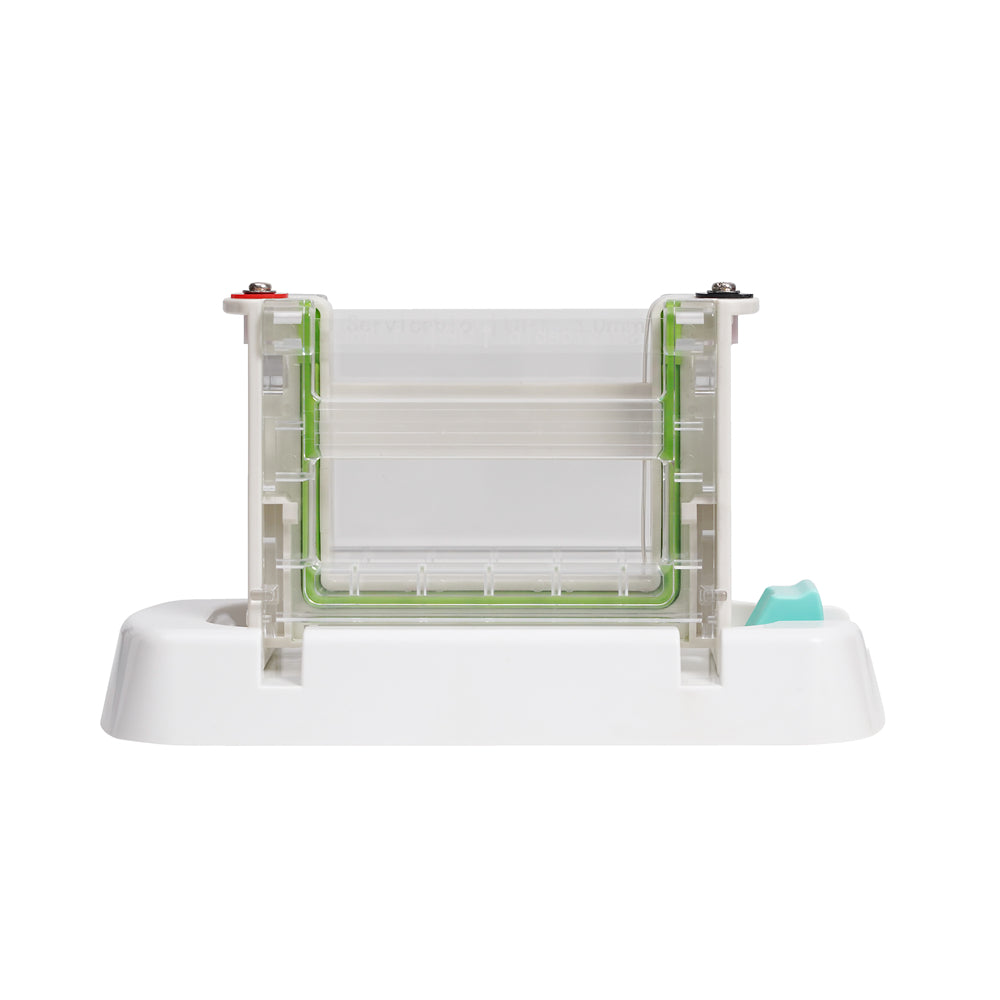

Adopts an insitu gel preparation mode, allowing for the completion of gel preparation and electrophoresis without disassembling the electrophoresis glass plates. It is also compatible with the electrophoresis requirements of prefabricated gel products of the same model and specification.
The gel preparation base features a special design that enables a single handed, one-step clamping operation.
The uniquely designed pressure cover is clamped in a single step, allowing the glass plates to be sealed by squeezing the sealing strip.
It is compatible with various thicknesses of glass plates and sample combs (1.5mm, 1mm, 0.75mm), catering to different volume requirements.
Capable of conducting electrophoresis for up to four gels simultaneously.
Can be used in conjunction with the SVT-4 transfer electrophoresis apparatus.
Product Parameters
|
Cat.No. |
SVE-4 |
|
Number of Gels |
1-4 |
|
Gel Size |
83×73mm |
|
External Dimensions |
153×183×159mm |
|
Comb Specifications |
1.0mm: 11 teeth / 15 teeth 1.5mm: 11 teeth / 15 teeth 0.75mm: 11 teeth / 15 teeth |
|
Maximum Buffer Capacity |
1.6L |
|
Weight |
1KG |
Product Introduction
Electrophoresis technology is widely used in biological research, analytical chemistry, clinical chemistry, toxicology, pharmacology, immunology, food chemistry, and other fields.
In a direct current electric field, the phenomenon of charged particles moving towards electrodes with opposite charges is known as electrophoresis. Through electrophoresis, small molecules can be separated and analyzed. Modern medicine often employs electrophoresis to study proteins, nucleic acids, enzymes, and even virus cells.
Electrophoresis is not only applicable to the separation and quantification of proteins but also boasts numerous new applications in immunological experiments. For instance, it is used in the electrophoresis assay of hepatitis B antigen (HBAg) for the diagnosis of hepatitis B and the electrophoresis assay of alpha-fetoprotein (AFP) for the diagnosis of primary liver cancer.
Product Features
Adopts an insitu gel preparation mode, allowing for the completion of gel preparation and electrophoresis without disassembling the electrophoresis glass plates. It is also compatible with the electrophoresis requirements of prefabricated gel products of the same model and specification.
The gel preparation base features a special design that enables a single handed, one-step clamping operation.
The uniquely designed pressure cover is clamped in a single step, allowing the glass plates to be sealed by squeezing the sealing strip.
It is compatible with various thicknesses of glass plates and sample combs (1.5mm, 1mm, 0.75mm), catering to different volume requirements.
Capable of conducting electrophoresis for up to four gels simultaneously.
Can be used in conjunction with the SVT-4 transfer electrophoresis apparatus.
Product Parameters
|
Cat.No. |
SVE-4 |
|
Number of Gels |
1-4 |
|
Gel Size |
83×73mm |
|
External Dimensions |
153×183×159mm |
|
Comb Specifications |
1.0mm: 11 teeth / 15 teeth 1.5mm: 11 teeth / 15 teeth 0.75mm: 11 teeth / 15 teeth |
|
Maximum Buffer Capacity |
1.6L |
|
Weight |
1KG |
