SVL-2：Integrated Horizontal Electrophoresis System
SVL-2：Integrated Horizontal Electrophoresis System
Couldn't load pickup availability
Share
ProductOverview

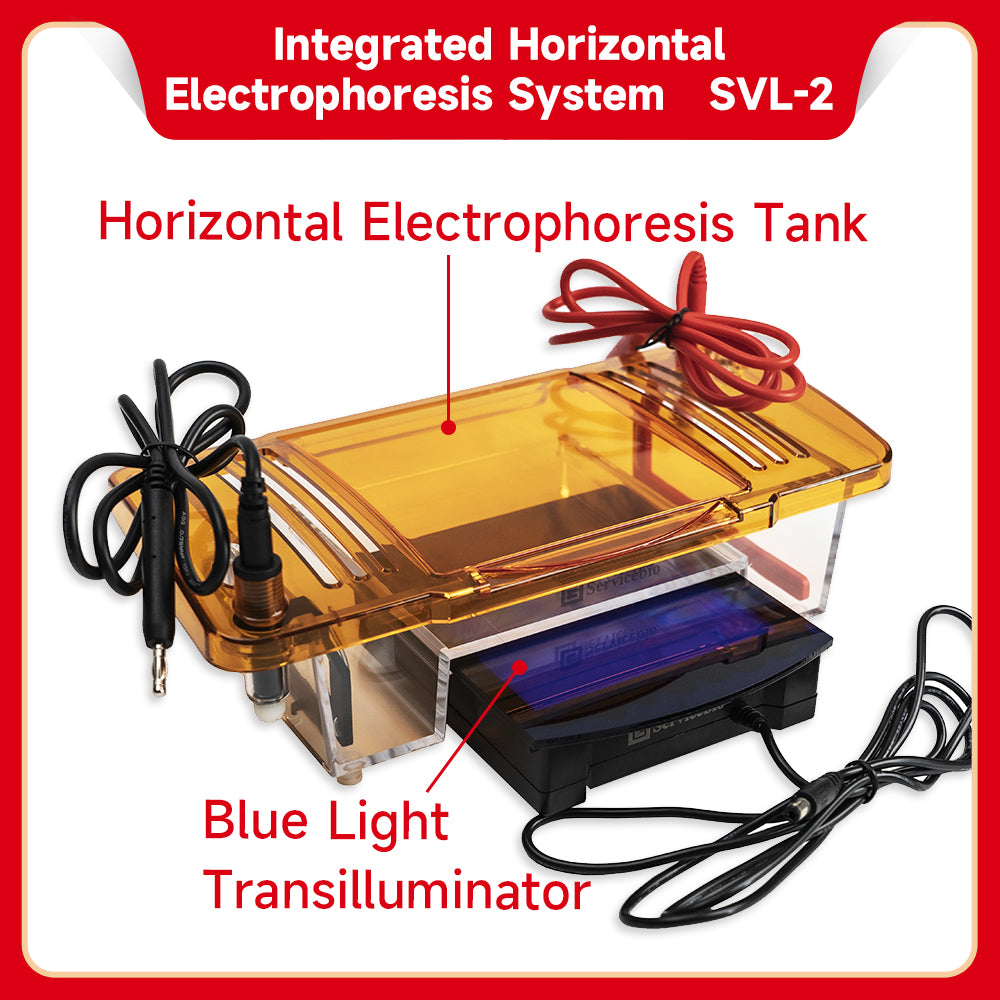

SVL-2 integrated horizontal electrophoresis instrument is mainly used for rapid agarose electrophoresis separation experiments of small amounts of DNA and RNA samples.
Product Features
1. The gel maker mold is integrally formed, which can make four different sizes ofgel blocks.
2. Standard blue light transilluminator, with SPW-6S electrophoresis power supply, can directly observe the band during the electrophoresis process.
3. The transparent upper cover has a hole design, which is convenient for heat dissipation and observation.
4. Card slot limit function, accurate operation.
5. The electrode holder and electrode head are detachable, which is convenient for cleaning and maintenance.
Product Specifications
|
1 |
Product number |
SVL-2 |
|
2 |
Specifications and Dimensions (LXWXH) |
310X150X120mm |
|
3 |
Gel Tray Specifications (LXW) |
Largegel 120mm X 120mm; Widthgel 60mmX120mm; Longgel 120mm X 60mm; Smallgel 60mmX60mm |
|
4 |
Specimen Comb Specifications |
1.0mm 25/11 teeth 1.5mm 13/6 teeth 2.0mm 3/2 tooth |
|
5 |
Blue light wavelength |
470nm |
|
6 |
Buffer capacity |
260mL |
|
7 |
Weight |
1kg |
ProductOverview
SVL-2 integrated horizontal electrophoresis instrument is mainly used for rapid agarose electrophoresis separation experiments of small amounts of DNA and RNA samples.
Product Features
1. The gel maker mold is integrally formed, which can make four different sizes ofgel blocks.
2. Standard blue light transilluminator, with SPW-6S electrophoresis power supply, can directly observe the band during the electrophoresis process.
3. The transparent upper cover has a hole design, which is convenient for heat dissipation and observation.
4. Card slot limit function, accurate operation.
5. The electrode holder and electrode head are detachable, which is convenient for cleaning and maintenance.
Product Specifications
|
1 |
Product number |
SVL-2 |
|
2 |
Specifications and Dimensions (LXWXH) |
310X150X120mm |
|
3 |
Gel Tray Specifications (LXW) |
Largegel 120mm X 120mm; Widthgel 60mmX120mm; Longgel 120mm X 60mm; Smallgel 60mmX60mm |
|
4 |
Specimen Comb Specifications |
1.0mm 25/11 teeth 1.5mm 13/6 teeth 2.0mm 3/2 tooth |
|
5 |
Blue light wavelength |
470nm |
|
6 |
Buffer capacity |
260mL |
|
7 |
Weight |
1kg |
