SVT-4: Transfer Electrophoresis System （Integrated, blotting 4 gels simultaneously）
SVT-4: Transfer Electrophoresis System （Integrated, blotting 4 gels simultaneously）
Couldn't load pickup availability
Share

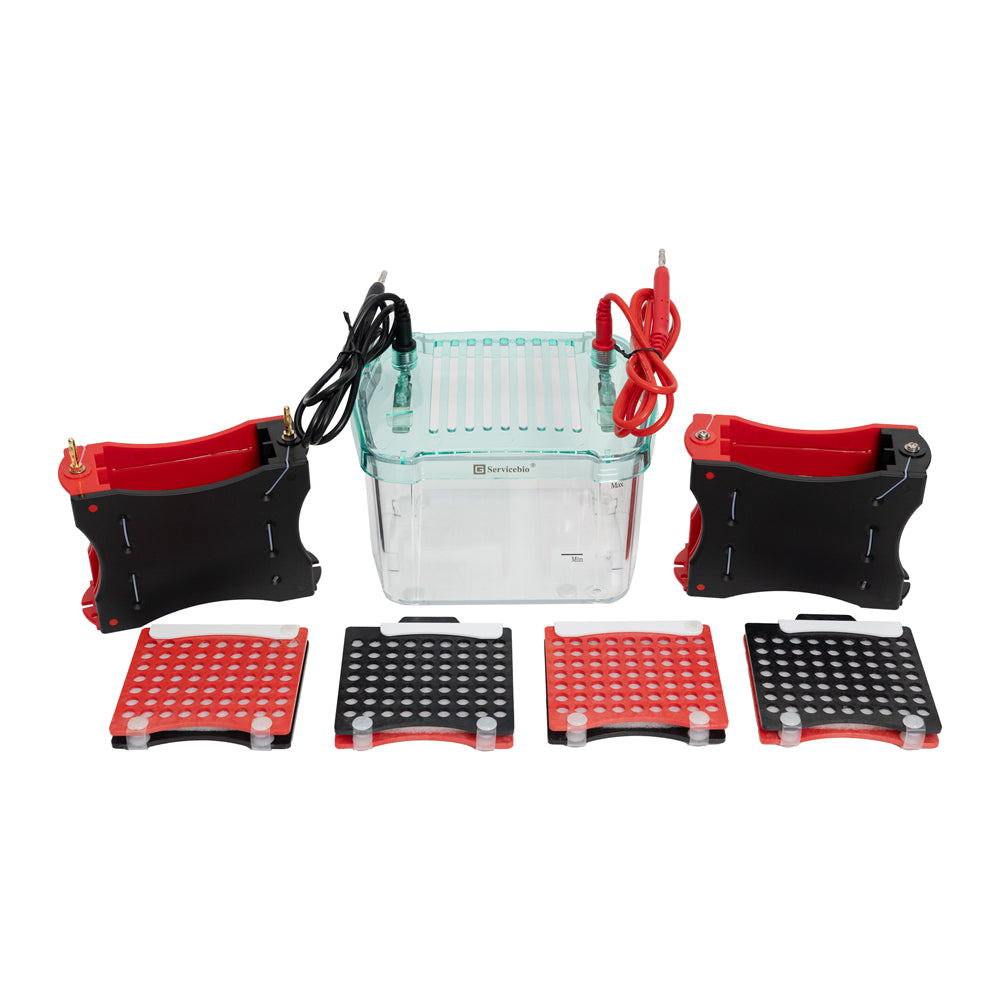

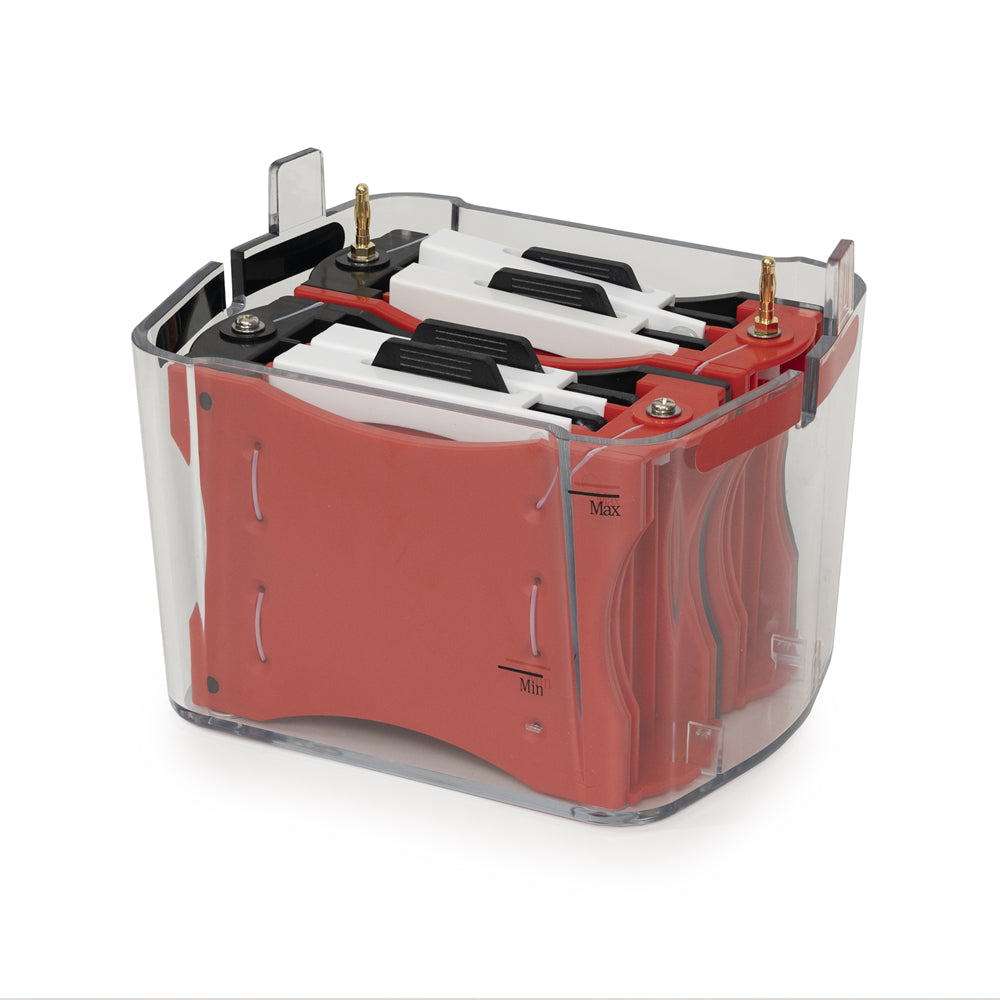

Supports up to 4 membrane simultaneously; Comes with 2 transfer cores; The transfer clamp features a handle for easy handling; Incorporates multiple anti-reverse designs; Marked liquid level lines on the tank surface.
Products Information
This product is designed to be used in conjunction with SVE-4 and SVE-2H vertical electrophoresis systems. It utilizes an electric field to transfer proteins, nucleic acids, and other components from the post-electrophoresis gel onto blotting membranes, enabling further analysis and research of charged particles through biochemical analysis methods
Product Features
1.Dual-plate structure, compatible with SVE-4 and SVE-2H electrophoresis system.
2.The electrophoresis tank is molded from high-transparency polycarbonate in a single injection process, featuring corrosion resistance, high transparency, and product stability.

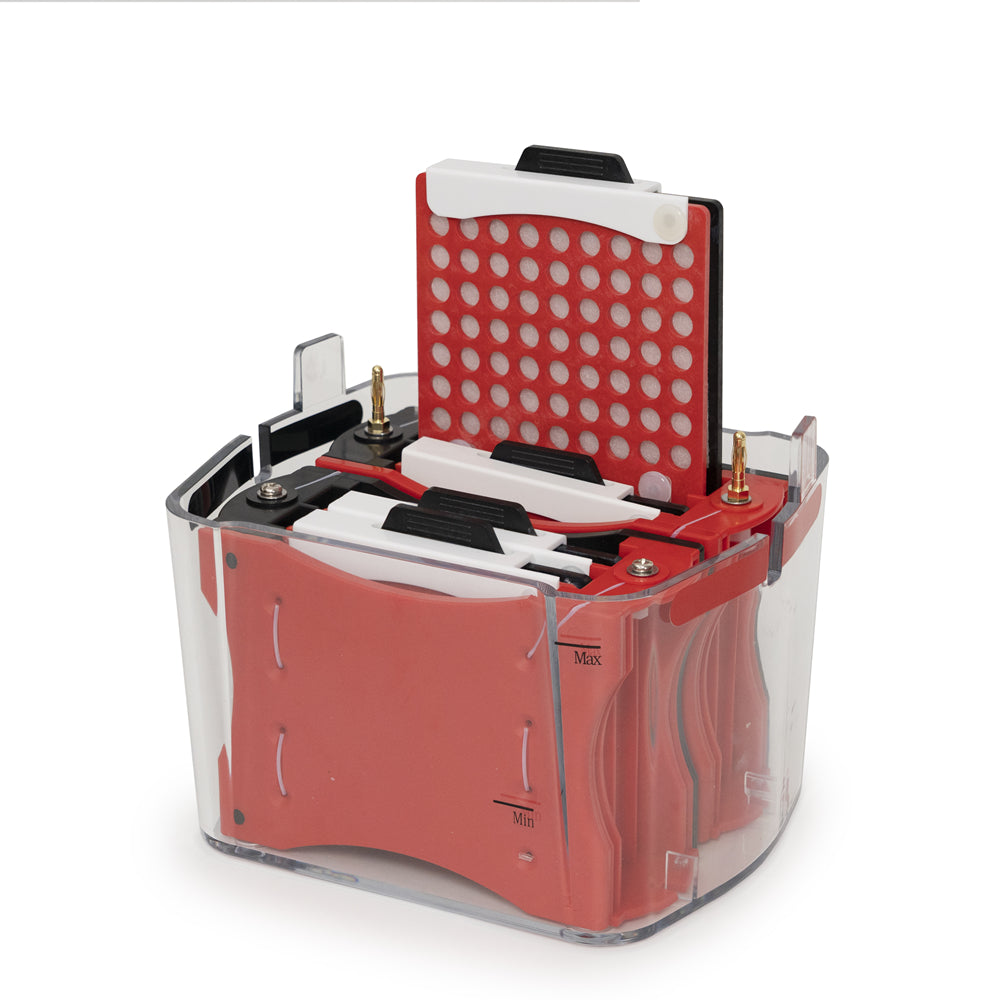

3.The transfer clip have clearly marked positive and negative poles, equipped with handles for convenient operation.
4.High blotting efficiency, with a blotting time of approximately 20~40 minutes.Structurally stable materials allow for simultaneous ice bath cooling to prevent overheating interference and ensure reliable experimental results.
6.Capable of blotting four membranes simultaneously.
Products Parameters
|
Cat.No. |
SVT-4 |
|
Number of Gels |
1-4 |
|
Blotting Membrane Size |
70×90mm |
|
External Dimensions |
153×183×159mm |
|
Maximum Buffer Capacity |
1.6L |
Supports up to 4 membrane simultaneously; Comes with 2 transfer cores; The transfer clamp features a handle for easy handling; Incorporates multiple anti-reverse designs; Marked liquid level lines on the tank surface.
Products Information
This product is designed to be used in conjunction with SVE-4 and SVE-2H vertical electrophoresis systems. It utilizes an electric field to transfer proteins, nucleic acids, and other components from the post-electrophoresis gel onto blotting membranes, enabling further analysis and research of charged particles through biochemical analysis methods
Product Features
1.Dual-plate structure, compatible with SVE-4 and SVE-2H electrophoresis system.
2.The electrophoresis tank is molded from high-transparency polycarbonate in a single injection process, featuring corrosion resistance, high transparency, and product stability.
3.The transfer clip have clearly marked positive and negative poles, equipped with handles for convenient operation.
4.High blotting efficiency, with a blotting time of approximately 20~40 minutes.Structurally stable materials allow for simultaneous ice bath cooling to prevent overheating interference and ensure reliable experimental results.
6.Capable of blotting four membranes simultaneously.
Products Parameters
|
Cat.No. |
SVT-4 |
|
Number of Gels |
1-4 |
|
Blotting Membrane Size |
70×90mm |
|
External Dimensions |
153×183×159mm |
|
Maximum Buffer Capacity |
1.6L |
