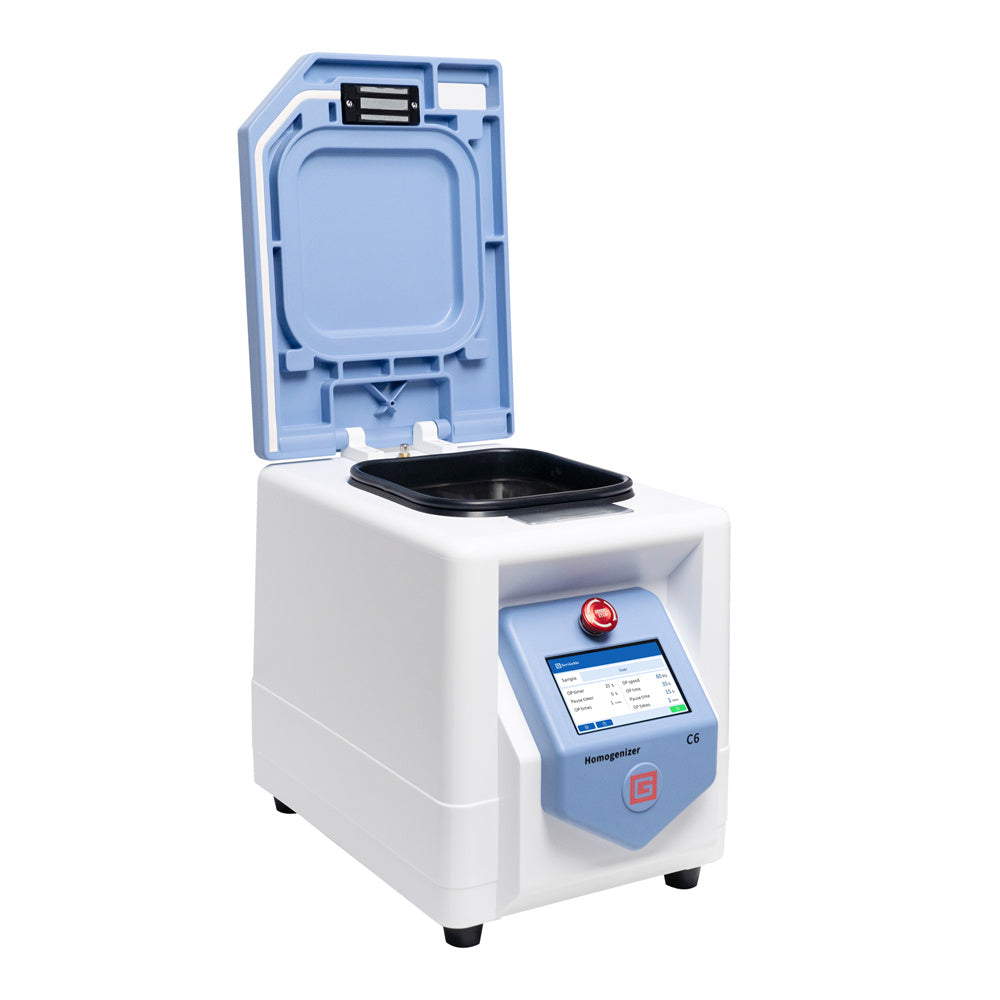

SWE-C6: Tissue Homogenizer（Vertical motion）
SWE-C6: Tissue Homogenizer（Vertical motion）
Couldn't load pickup availability
Share
Product Introduction
The tissue homogenizer utilizes a vertical shock system with high-speed reciprocating motion to make the frozen
samples in the grinding tube collide with the grinding beads, The resulting grinding shear force and impact force
completely crush the tissues, making it a specialized device for rapid one-time processing of multiple samples in
research institutions,universities, agricultural colleges, biomedical and food testing fields.
Product Features:
1.Linear guide rail, stable and durable, capable of continuous grinding for 24 hours
2.Capable of processing up to 96 samples simultaneously (standard configuration of 24 samples)
3.Adapter module can be pre-cooled at low temperature to reduce sample degradation
4.Multiple adapters are optional
5.Compact and sleek appearance
Products Parameters
Working Environment
| Power Parameters |
200-240VAC(110Vavailable),50-60Hz.240W: power voltage fluctuation does not exceed 10% ofthe rated powervoltage. |
| Room Temperature | 5℃-40℃ |
| Relative Humidity | Max.80% |
| OperatingLocation | Indoor |
Technical Parameters
| Cat.NO. | SWE-C6 |
| Dimensions | 296×452×376mm |
| Weight | 26.2kg |
| Screen size | 5 inches |
| Operating Time | Operatingtime:0-9999s,Pause time:0-999s,Operating cycles: 1-99 times |
Product Introduction
The tissue homogenizer utilizes a vertical shock system with high-speed reciprocating motion to make the frozen
samples in the grinding tube collide with the grinding beads, The resulting grinding shear force and impact force
completely crush the tissues, making it a specialized device for rapid one-time processing of multiple samples in
research institutions,universities, agricultural colleges, biomedical and food testing fields.
Product Features:
1.Linear guide rail, stable and durable, capable of continuous grinding for 24 hours
2.Capable of processing up to 96 samples simultaneously (standard configuration of 24 samples)
3.Adapter module can be pre-cooled at low temperature to reduce sample degradation
4.Multiple adapters are optional
5.Compact and sleek appearance
Products Parameters
Working Environment
| Power Parameters |
200-240VAC(110Vavailable),50-60Hz.240W: power voltage fluctuation does not exceed 10% ofthe rated powervoltage. |
| Room Temperature | 5℃-40℃ |
| Relative Humidity | Max.80% |
| OperatingLocation | Indoor |
Technical Parameters
| Cat.NO. | SWE-C6 |
| Dimensions | 296×452×376mm |
| Weight | 26.2kg |
| Screen size | 5 inches |
| Operating Time | Operatingtime:0-9999s,Pause time:0-999s,Operating cycles: 1-99 times |
